Universal Frontend Architecture

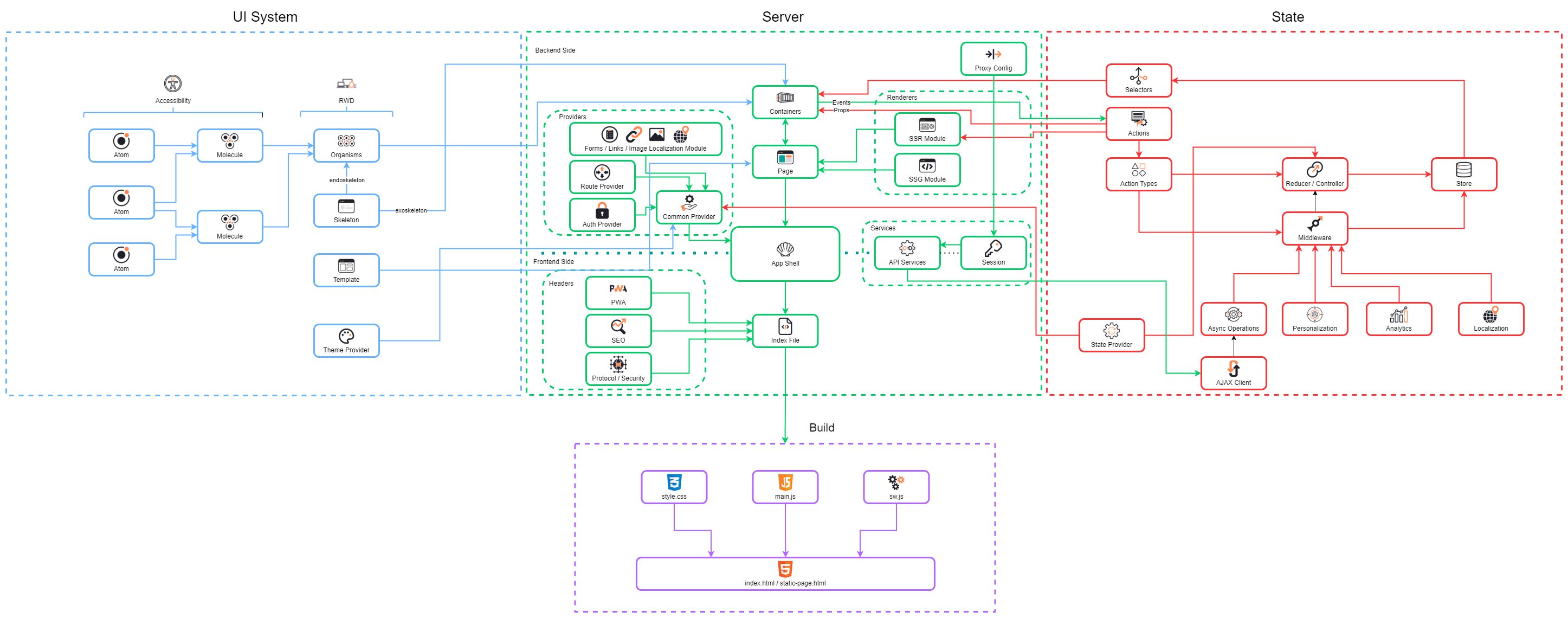

The image illustrates a Universal Frontend Architecture that organizes the frontend development process into three main sections: UI System, Server, and State, with a separate Build module for deployment. Below is a breakdown of each section:

---

UI System

The UI System focuses on building the user interface components in a modular and hierarchical manner:

• Atoms: These are the smallest building blocks of the UI, such as buttons, inputs, or icons.
• Molecules: Groups of atoms combined to form more complex components, like input fields with labels or buttons with icons.
• Organisms: Larger components formed by combining molecules, such as navigation bars or forms. These organisms are responsive and accessible.
• Skeleton: Placeholder UI components used during loading states.
• Template: Defines the structure and layout of pages by arranging organisms.
• Theme Provider: Manages styling and themes across the application.

---

Server

The server section handles rendering logic and backend interaction:

• Providers:
  • Form/Links/Image Localization Module: Handles dynamic content like forms, links, and localized images.
  • Route Provider: Manages routing within the application.
  • Auth Provider: Handles authentication-related functionalities.
  • Common Provider: Serves shared functionalities across modules.

• Containers: Wraps components to manage data flow (e.g., props) between UI elements and state.

• Rendering Modules:
  • SSR Module: Server-Side Rendering for pre-rendering pages on the server before sending them to the client.
  • SSG Module: Static Site Generation for building static HTML files during build time.

• App Shell: Provides a lightweight framework to load essential parts of the app quickly.

• Frontend Side Headers:
  • PWA: Progressive Web App capabilities for offline use and enhanced performance.
  • SEO: Search Engine Optimization elements for better visibility.
  • Protocol/Security: Ensures secure communication protocols.

---

State

The state section manages application data flow and logic:

• Store: Centralized state management system (e.g., Redux).
• Reducer/Controller: Handles state updates based on dispatched actions.
• Actions & Action Types: Define events that trigger state changes.
• Selectors: Extract specific pieces of state for use in components.
• Middleware:
  • Async Operations: Handles asynchronous tasks like API calls.
  • Personalization: Customizes user experience based on preferences or data.
  • Analytics: Tracks user interactions and app performance metrics.
  • Localization: Supports multiple languages and regional settings.

---

Build

The build section compiles the application into deployable assets:

• Outputs include:
  • style.css (CSS files for styling)
  • main.js (JavaScript files for functionality)
  • sw.js (Service Worker scripts)
  • index.html/static-page.html (HTML files for rendering).

These files are bundled together for deployment to production environments.

---

This architecture ensures modularity, scalability, and maintainability in frontend development while supporting both dynamic and static rendering approaches.
